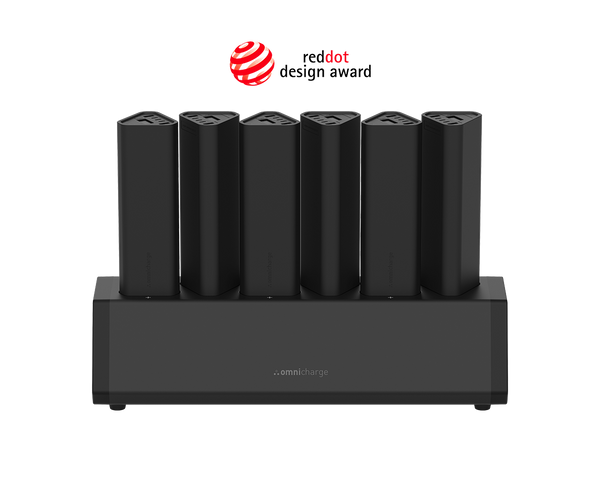

Omni Power Station 40+

Power Station

Weight: 12.07kg (26.6 lbs)
Dimensions: 486mm x 184mm x 335mm (19.1 x 7.2 x 13.2 in)

Input: 100V-240V~,50/60Hz, up to 4A
Output: 24V 2A (per charging bay)

Omni Power 40+ For Power Station

Weight: 2.35 lbs (1066 g)
Dimensions: 9.5" x 2.7" x 2.5"(24.3 x 7.1 x 6.5 cm)
Combined output all ports: 120W

AC Port

120V AC, 60Hz, 100W Max US version
230V AC, 50Hz, 100W Max EU version

USB-C Port

Bidirectional Input & Output Charging
Input: USB-PD 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 36W Max (Main / Port 1)
Output: (Main / Port 1) 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓5A, 100W Max
(Port 2 & 3) 5V⎓3A, 9V⎓3A, 12V⎓3A, 30W Max

USB-A Output

Port 1: (Single) 5V⎓3A, 9V⎓2A, 12V⎓1.5A, 18W Max
Port 2: (Both) 5V each, total 5V⎓4.8A

DC Port

Bidirectional Input & Output charging
Input: 5~25V, up to 5A, 36W Max
Output: 5~25V, up to 5A, 100W Max

Battery

12 cells, 142Wh (+/- 5%)

What is included

Base Station
6 portable chargers
AC power cable
Instruction Manual

Safety

AC Outlet

• Provides up to 100W of power, functioning like a standard wall socket (supports120V).
• Use this port for devices with larger chargers that use a wall plug, such as laptops, cameras, portable projectors and other portable electronics. Ensure power usage is under 100W.
• To determine power requirements of your device, find the voltage (V), current (A), or wattage (W) on your device's charger, label, or manual. For example, a laptop with “20V, 3A” needs 60W of power. If unsure, search your device model online with terms like "power requirements" for detailed specs.

USB-C Port

• Delivers up to 100W of power with Power Delivery (PD).
• Suitable for devices supporting USB-C PD, such as MacBooks or iPads. Confirm that your device’s power needs are within the 100W limit of this port, and make sure to use a High Wattage USC-C Cable.
• Can also be used as an input for quickly recharging the power bank.

USB-C Hub

• Use the Omni 40 as a USB hub and transfer files between your smartphones, flash drives, cameras or laptops.
•
  1. Connect the USB-C/HUB port (in the canter) to a USB-C port on your laptop
•
  2. Initiate HUB mode by short pressing the HUB button (Right button), and a HUB icon will appear on the screen.
• All the remaining USB-C ports and USB-A ports can be used to transfer files from smartphones, flash drives, cameras or other standard USB-A or USB-C devices

USB-A Ports (x2)

• Each port offers up to 18W, suitable for legacy USB devices like smartphones, headphones, and other accessories.

DC Input/Output Port

• Adjustable from 1V to 25V with up to 100W output, designed for specialized devices like drones, portable monitors, and custom electronics.
• Set the voltage and current on the OLED display to match your device's requirements. Make sure the connector type (e.g., barrel size) is compatible. With our Laptop DC Tips, Omnicharge provides the most commonly used tips to charge your devices and recharge the Omnicharge with your laptop charger.
• Can also be used as an input for quickly recharging the power bank.

1. Which Power Station model should I install in my space?

That depends on the use case. But typically, we find organizations install these models in spaces. If you need help selecting a model, please contact us HERE:

2. How many Power Stations do I need for my space?

For optimal coverage, we recommend one Power Station per 25 people. If you need assistance to select a model, please contact us or fill out the business inquiry form.

3. Where should I deploy my Power Station?

To maximize the benefits of your Power Station, place it in a location that's easily accessible for all users. Ensure it's on a flat, stable surface with good ventilation, away from direct sunlight and heat sources. Keep it protected from moisture and corrosive materials. By following these simple safety guidelines, you can expect a dependable power source that keeps productivity seamless and uninterrupted.

4. How long does it take for the Power Station to fully recharge the batteries?

Typically, it takes about three to four hours for the Power Station to fully recharge the batteries. Our Omni Power Stations are equipped with Dynamic Power Protection firmware, ensuring charging efficiency and safety. Once a power bank reaches 100% charge, it will automatically disengage charging and allow itself to deplete to around 80% before re-engaging. This intelligent feature enhances the longevity of your power banks, though you may only notice it if the power banks aren't used frequently.

5. How many times can Omnicharge recharge a laptop on a single charge?

Below is a reference guide when recharging laptops using different omnicharge models:

NOTE: If you're using your laptop while charging, expect it to draw power primarily from the external battery first. The exact remaining usage time varies based on your laptop's specifications and the applications you have running. For precision and control over your energy consumption, simply consult the OLED screen on your Omnicharge. It provides real-time insights into power draw and battery status, helping you confidently manage your mobile power needs.

6. How long do the Omnicaharge batteries last?

Omnicharge devices are crafted with top-tier materials, including premium lithium-ion battery cells, designed to withstand day-to-day use in professional and dynamic environments. With proper care, you can rely on these power solutions for years of dependable service.

Note: The lifespan of your Omnicharge device may vary based on usage patterns, frequency of use, the types of devices being charged, output wattage, and other factors. To maximize the longevity and performance of your Omnicharge, we recommend the following best practices:

Rotate Battery Usage: Ensure balanced usage across all batteries in the station to maintain optimal performance.

Power Off When Not in Use: Switch off stations when they are not needed to conserve energy and extend battery life.

Optimal Environment: Position stations in a cool, well-ventilated area, away from heat sources and moisture to safeguard against environmental stress.

7. What are the power requirements for each Power Station?

Explore the power requirements for each of our Power Station Models in the table below:

We recommend connecting only one Power Station to a single wall outlet and avoiding using power strips/extenders. To avoid overloading, please ensure the station is connected to a socket suitable for the required power rating.

9. Tell me more about the safety features of the power stations?

The Power Station charging base comes with the following protection features:

• Shock-resistant aluminum casing with high-efficiency heat dissipation
• Smart Overheat Protection: Power recovers automatically when the temperature lowers to the normal operation threshold.
• Short Circuit Protection
• Over-Voltage Protection

Each portable Omnicharge unit is equipped with the following safety features:

• Flame retardant casing shell
• Balanced structure layout and heat management
• Proprietary battery balancing management
• Battery overcharging/discharging protection
• Battery under-voltage/over-voltage protection
• Comprehensive temperature protection - High / Low Temperature protection
• Comprehensive temperature sensors
• Short-circuit protection
• Overload protection
• Surge protection
• End protection

Last Updated: November 14, 2023

IMPORTANT: BY USING OMNICHARGE PRODUCT ACQUIRED FROM OMNICHARGE, INC. OR ITS AFFILIATES (COLLECTIVELY, "OMNICHARGE") YOU AGREE TO BE BOUND BY THE TERMS OF THIS ONE (1) YEAR LIMITED WARRANTY ("WARRANTY") AS SET OUT BELOW. DO NOT USE YOUR OMNICHARGE PRODUCT UNTIL YOU HAVE READ THE TERMS OF THE WARRANTY, AND YOU ACCEPT ITS TERMS AND CONDITIONS, INCLUDING THE LIMITATIONS, EXCLUSIONS, AND DISCLAIMERS THEREIN.IF YOU DO NOT AGREE TO THE TERMS OF THE WARRANTY, DO NOT USE THE PRODUCT AND RETURN IT TO PLACE OF PURCHASE WITHIN THE RETURN PERIOD STATED IN OMNICHARGE'S REFUND POLICY.

HOW CONSUMER LAW RELATES TO THIS WARRANTY

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE). OTHER THAN AS PERMITTED BY LAW, OMNICHARGE DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU MAY HAVE, INCLUDING THOSE THAT MAY ARISE FROM THE NONCONFORMITY OF A SALES CONTRACT. FOR A FULL UNDERSTANDING OF YOUR RIGHTS YOU SHOULD CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE.

WARRANTY LIMITATIONS SUBJECT TO CONSUMER LAW

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL, WRITTEN, STATUTORY, EXPRESS OR IMPLIED. OMNICHARGE DISCLAIMS ALL STATUTORY AND IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT, QUIET ENJOYMENT AND COMPATIBILITY. These disclaimers of implied warranties do not apply if such warranties cannot be lawfully disclaimed under the applicable laws of the customer's jurisdiction. In such cases, the duration and scope of any implied warranties shall be limited to the maximum extent permitted by the applicable law.

WHAT IS COVERED BY THIS WARRANTY?

Omnicharge warrants the Omnicharge-branded hardware product and Omnicharge-branded accessories contained in the original packaging ("Omnicharge Product") against defects in materials and workmanship when used normally in accordance with Omnicharge's Published Guidelines. This warranty is valid for a period of ONE (1) YEAR ("Warranty Period") from the date of delivery of the Omnicharge Product to the purchaser. Omnicharge's "Published Guidelines" include but are not limited to information contained in technical specifications, quick start guides, user manuals, and service communications published or authorized by Omnicharge.

WHAT IS NOT COVERED BY THIS WARRANTY?

Omnicharge is not responsible for damage arising from failure to follow instructions relating to the Omnicharge Product's use.

THIS WARRANTY DOES NOT APPLY: (A) TO CONSUMABLE PARTS, SUCH AS BATTERIES THAT ARE DESIGNED TO DIMINISH OVER TIME, UNLESS FAILURE HAS OCCURRED DUE TO A DEFECT IN MATERIALS OR WORKMANSHIP; (B) TO COSMETIC DAMAGE, INCLUDING BUT NOT LIMITED TO SCRATCHES, DENTS AND BROKEN PLASTIC ON PORTS UNLESS FAILURE HAS OCCURRED DUE TO A DEFECT IN MATERIALS OR WORKMANSHIP; (C) TO DAMAGE CAUSED BY USE WITH ANY THIRD PARTY COMPONENT OR PRODUCT THAT DOES NOT MEET THE OMNICHARGE PRODUCT'S SPECIFICATIONS (OMNICHARGE PRODUCT SPECIFICATIONS ARE AVAILABLE AT WWW.OMNICHARGE.CO UNDER THE TECHNICAL SPECIFICATIONS FOR EACH PRODUCT AND/OR IN THE PRODUCT MANUAL); (D) TO DAMAGE CAUSED BY ACCIDENT, ABUSE, MISUSE, FIRE, LIQUID CONTACT, EARTHQUAKE OR OTHER EXTERNAL CAUSE BEYOND OMNICHARGE'S CONTROL; (E) TO DAMAGE CAUSED BY OPERATING THE OMNICHARGE PRODUCT OUTSIDE OMNICHARGE'S PUBLISHED GUIDELINES; (F) TO DAMAGE CAUSED BY SERVICE (INCLUDING UPGRADES) PERFORMED BY ANYONE WHO IS NOT A REPRESENTATIVE OF OMNICHARGE; (G) TO AN OMNICHARGE PRODUCT THAT HAS BEEN MODIFIED TO ALTER FUNCTIONALITY OR CAPABILITY; (H) TO DEFECTS CAUSED BY NORMAL WEAR AND TEAR OR OTHERWISE DUE TO THE NORMAL AGING OF THE OMNICHARGE PRODUCT; OR (J) IF OMNICHARGE RECEIVES INFORMATION FROM RELEVANT PUBLIC AUTHORITIES THAT THE PRODUCT HAS BEEN STOLEN OR YOU CANNOT PROVE IN ANY WAY THAT YOU ARE THE AUTHORIZED USER OF THE PRODUCT (E.G. BY PRESENTING PROOF OF PURCHASE).

Furthermore, the Warranty provided herein shall not apply to any damage, malfunction, or other issues arising from the use of Omnicharge Products purchased for resale or rental to third parties unless otherwise agreed under the Power-as-a Service (PaaS) solution Omnicharge offers.

If you are unsure about whether the warranty applies to your specific situation or if you are interested in Omnicharge's PaaS solution for rental services, please contact support@omnipower.com.

YOUR RESPONSIBILITIES

Before receiving warranty service, Omnicharge or its agents may require that you furnish proof of purchase details, respond to questions designed to assist with diagnosing potential issues and follow Omnicharge's procedures for obtaining warranty service. Following warranty service your Omnicharge Product or a replacement device will be returned to you as your Omnicharge Product was configured when originally purchased, subject to applicable updates.

WHAT WILL OMNICHARGE DO IN THE EVENT OF A WARRANTY CLAIM ?

If, during the Warranty Period, you submit a claim to Omnicharge in accordance with this warranty, Omnicharge will, at its option: (i) repair the Omnicharge Product using new or previously used parts that are equivalent to new in performance and reliability, (ii) replace the Omnicharge Product with the same model (or with your consent a product that has similar functionality) formed from new and/or previously used parts that are equivalent to new in performance and reliability. When an Omnicharge Product or part is replaced, any replacement item becomes your property and the replaced item becomes Omnicharge's property. We strongly suggest you to review the online help resources or contact us at support@omnicharge.co before submitting a claim.

WARRANTY SERVICE OPTIONS

WARRANTY SERVICE OPTIONS Omnicharge will be responsible for shipping to the customer after repair/replacement ONLY. The customer is responsible for all shipping/handling charges related to returning the product to Omnicharge. Products must be shipped in their original packaging or otherwise suitably protected to avoid damage during shipping. Omnicharge will not be responsible for any damage incurred during shipment. Omnicharge will only be responsible for packages that are verified as having been received into our warehouse via a shipment tracking number provided by the customer's shipping company. Omnicharge reserves the right to change the method by which Omnicharge may provide warranty service to you, and your Omnicharge Product's eligibility to receive a particular method of service. Service will be limited to the options available in the country where service is requested. Service options, parts availability and response times may vary according to country. You may be responsible for shipping and handling charges if the Omnicharge Product cannot be serviced in the country it is in. If you seek service in a country that is not the original country of purchase, you must comply with all applicable import and export laws and regulations and be responsible for all custom duties, V.A.T. and other associated taxes and charges. Where international service is available, Omnicharge may repair or replace Omnicharge Products and parts with comparable Omnicharge Product and parts that comply with local standards.

LIMITATION OF LIABILITY

EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW, (A) OMNICHARGE IS NOT RESPONSIBLE FOR INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; OR LOSS OF REPUTATION HOWSOEVER CAUSED, AND (B) UNDER NO CIRCUMSTANCES WILL OMNICHARGE'S AGGREGATE LIABILITY OF ALL KINDS ARISING OUT OF OR RELATED TO YOUR USE OF THE OMNICHARGE PRODUCT, REGARDLESS OF WHETHER ANY ACTION OR CLAIM IS BASED ON CONTRACT, TORT, OR OTHERWISE, EXCEED THE TOTAL AMOUNTS PAID YOU PAID TO ACQUIRE THE OMNICHARGE PRODUCTS. THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. OMNICHARGE DISCLAIMS ANY REPRESENTATION THAT IT WILL BE ABLE TO REPAIR ANY OMNICHARGE PRODUCT UNDER THIS WARRANTY. SOME STATES (COUNTRIES AND PROVINCES) DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

GENERAL

No Omnicharge reseller, agent, or employee is authorized to make any modification, extension, or addition to this Warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired. This Warranty is governed by and construed under the laws of the country in which the Omnicharge Product purchase took place.

Last updated: January 3, 2022

This Refund and Return Policy (this "Policy") supplements the Terms of Services of Omnicharge (the "Terms") for your purchases of our Products. Capitalized terms not herein defined shall have the meanings set forth in the Terms.

Return

We appreciate your purchase and hope you are happy with our Products. If you purchase our Products directly from the Website, you may return any Products to us for full refund subject to the terms of this Policy. If you purchase the Product from our distributors, the refund and return of the Products purchased will be subject to the applicable terms provided thereof.

We do not offer refund for any purchases that exceed an aggregate value of $500 or any products purchased for commercial uses as determined in our sole discretion. If our website provides that a product is non-refundable, we will not offer refund for such products. Products that are not refundable may be covered by our Warranty Policy.

Additional non-refundable items:

Free accessories that we provide as part of your purchase

Downloadable software products

Subscription for Smart Center

Discounted Products

Product must return in its original packaging and condition and never been used. All returns must be postmarked within thirty (30) days of the purchase date. Any Product that has been used will not be eligible for any return or refund. All return Products must include all packing material, manuals, documentation, and accessories. Product returned with missing or damaged accessories are not eligible for any return or refund, unless we determine in our sole discretion to accept such return with missing or damaged accessories.

To return your purchased Products, please contact our support team at support@omnicharge.co. Our support team will determine what further action is required. They will give you a Return Material Authorization (RMA) number. You will be solely responsible for the shipping cost of returning the Products. Omnicharge will not accept returns without prior authorization and an RMA number.

Once your return is received and inspected, we will send you an email to notify you that we have received your returned Product. We will also notify you of the approval or rejection of your refund. If we agree to accept any return with missing or damaged accessories, you hereby acknowledge and agree that we may deduct the value of the missing or damaged accessories from the credit issued back to you.

For approved returns your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within thirty (30) days. If you haven't received the refund after thirty (30) days, please contact us support@omnicharge.co.

Returning Goods

We cannot be held responsible for Products damaged or lost in returned shipment. Therefore, we recommend an insured and trackable mail service. We are unable to issue a refund without actual receipt of the Products or proof of received return delivery.

Defective Product

Notwithstanding the foregoing, Omnicharge offers limited warranties for defective Products. If you discover what you believe is a product defect, please contact our support team at support@omnicharge.co. If your Product is defective, your Product is covered under Omnicharge's limited warranty set forth below.

View Warranty Policy >>
